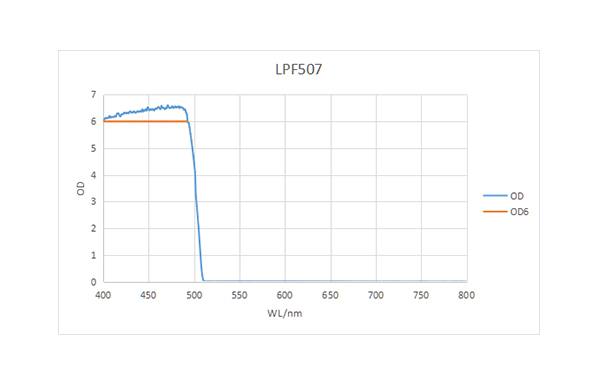

LPF
Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>90%@515~1200nm | 97.00% |
Edge Wavelength(Cut-ON@T=50%) | 503~511nm | 509 |
Edge Wavelength(Cut-ON@OD=6) | 488±4nm | 492 |
Blocking Band | ODAvg>6@400~484nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
