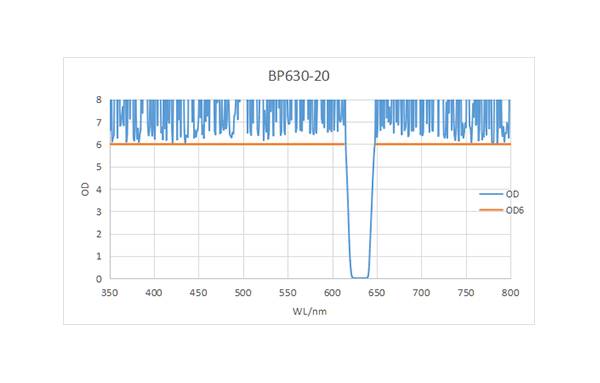

PCR-BPF
Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>92%@622~638nm | 96.05% |
Center Wavelength | 630±2nm | 631 |
Bandwidth(nm) | 20±2nm | 20 |
Blocking Band 1 | ODAvg>6@350~613nm | Pass |
Blocking Band 2 | ODAvg>6@648~850nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
