PCR-BPF

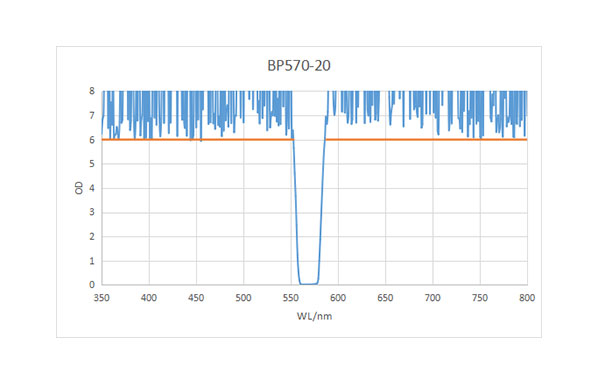

Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>92%@562~578nm | 94.83% |
Center Wavelength | 570±2nm | 570 |
Bandwidth(nm) | 20±2nm | 20 |
Blocking Band 1 | ODAvg>6@350~553nm | Pass |
Blocking Band 2 | ODAvg>6@587~850nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
