PCR-BPF
Parameters | SPEC | 图例/Example |
Transmission Band | TMin>90%@492~565nm | 93.4% |
TAvg>93%@492~565nm | 96.2% | |
Guaranteed Minimum Bandwidth(nm) | 73 | 80 |

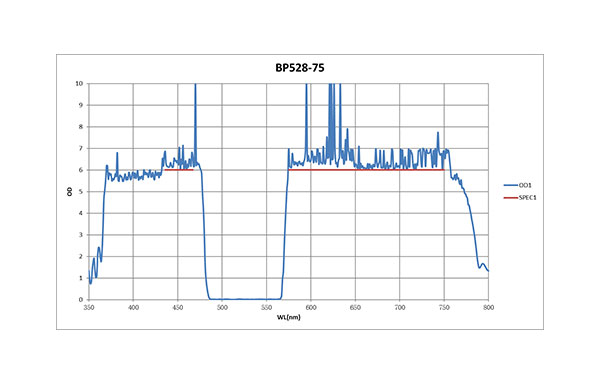

Blocking Band 1 | ODMin>6@436~467nm | 6.27 |
ODAvg>6@436~467nm | 6.72 | |
Blocking Band 2 | ODMin>6@575~750nm | 6.17 |
ODAvg>6@575~750nm | 7.11 | |
Angle of Incidence | 0 ± 2 degree | |
one Half-angle | 3.5 degree |
