PCR-BPF

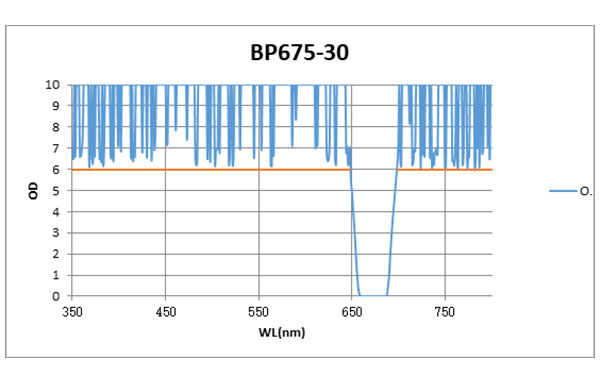

Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>93%@673.5~676.5nm | 97.10% |
Center Wavelength | 675±2nm | 673.5 |
Bandwidth(nm) | 30±2nm | 31.5 |
Blocking Band 1 | ODAvg>6@300~648nm | Pass |
Blocking Band 2 | ODAvg>6@700~900nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
