Narrowband Filter

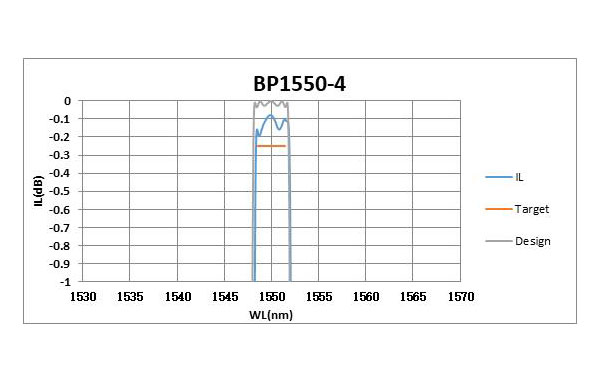

Parameters | Specification | 图例 |
CWL | 1550+0.0~+0.4nm | 1550.27nm |
Passband WL Range | 1550±1.5nm | |
Ripple@Passband | <0.3dB | 0.15nm |
BW@0.5dB | >3nm | 3.46nm |
BW@20dB | <6nm | 5.3nm |
ReflectBand WL Range | 1520-1545.5&1554.5-1570 | |
Transmit ISO | >50dB | 由于测试光源原因，无法测试到50dB |
