LPF
Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>90%@680~1200nm | 95.99% |
Edge Wavelength(Cut-ON@T=50%) | 670~675nm | 671 |
Edge Wavelength(Cut-ON@OD=6) | 645±5nm | 646 |

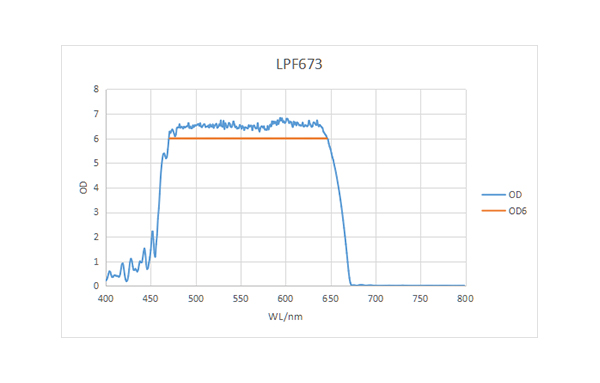

Blocking Band | ODAvg>6@400~640nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
