LPF

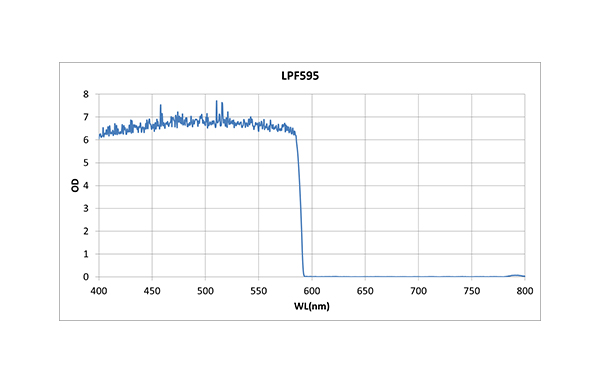

Parameters | SPEC | 图例/Example |
Transmission Band | TMin>90%@595~750nm | 95.04% |
TAvg>93%@595~750nm | 98.48% | |
Edge Wavelength(Cut-ON) (nm) | 591.8 | |
Blocking Band | ODMin>6@436~585nm | 6.19 |
ODAvg>6@436~585nm | 6.69 | |
Transition Width (nm) (90% - OD6) | 10 | 7.6 |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
