PCR-BPF

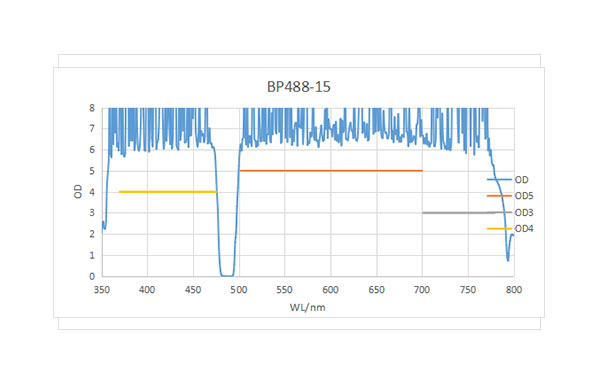

Parameters | SPEC | 图例/Example |
Transmission Band | TAvg>93%@483~493nm | 95.86% |
TMax-TMin<3% | Pass | |
Center Wavelength | 488±1.5nm | 487.5 |
Bandwidth(nm) | 15±0.5nm | 15.1 |
Blocking Band 1 | ODAvg>4@370~476nm | Pass |
Blocking Band 2 | ODAvg>5@502~700nm | Pass |
Blocking Band 3 | ODAvg>3@498~780nm | Pass |
Angle of Incidence | 0 ± 2 degree | |
Cone Half-angle | 3.5 degree |
